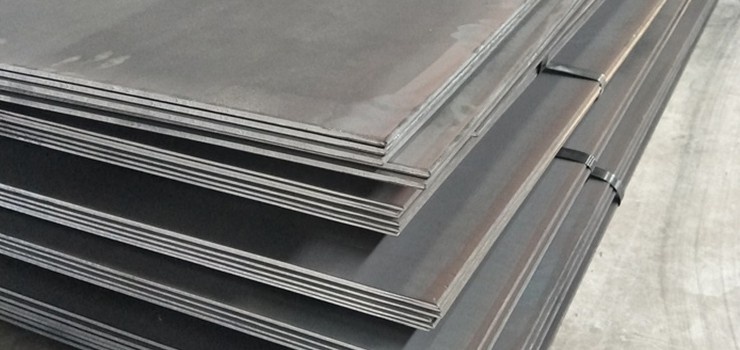

- SA 387 GR. SA 387 GR. 22 Plate In Thailand
SA 387 GR. 22 PLATE IN THAILAND
Grade 22 Class 2 A387 Alloy Steel Plates Dealer, A387GR22CL2 Cr-Mo Steel Plates Distributors in Thailand, SA 387 Gr. 22 Cl. 2 Pressure Vessel Steel Plates Stockholders
Champak Steel & Engg. Co, is one of the leading suppliers and exporters of SA 387 GR. 22 PLATE in Thailand. Based in Mumbai, India, with years of experience in supplying this high-quality alloy steel plate to cities across Thailand, including Bangkok, Rayong, Chonburi, and Phuket made as a trusted supplier. These plates are manufactured through a hot-rolled process, and are known for their high strength, excellent durability and resistance to heat and pressure. SA 387 GR. 22 plates are ideal for heavy machinery and high-temperature pressure vessels since they are frequently used in industries that need materials that can handle harsh conditions.
Our SA 387 GR. 22 plates are perfect for use in power generation, petrochemical plants, mining operations, and construction. They are built to handle harsh working conditions. The plates contain 2.25% chromium and 1% molybdenum, providing excellent resistance to oxidation and corrosion at high temperatures. With a minimum yield strength of 205 MPa and tensile strength starting at 415 MPa, these plates meet strict industry standards. We supply them in both standard and custom sizes, ranging from 5mm to 150mm in thickness, widths up to 4500mm, and lengths up to 18000mm. Each plate is impact tested at -52°C for added safety and reliability.
Each plate is packed securely with wooden pallets, waterproof wrapping, and steel strips. We also undertake ultrasonic, hardness, and flattening tests before shipment. We provide complete documentation, including a raw material test report, material traceability report, and heat treatment chart, along with mill test certificates as per EN 10204/3.1B. All our shipments to Thailand are done efficiently through sea and air freight, ensuring fast delivery to your preferred port or site.
If you’re seeking for a reliable supplier of SA 387 GR. 22 PLATE in Thailand, we’re here to help. Contact us today for a price and additional information on our available sizes and finishes.
SA 387 GR. 22 Plates Specification In Thailand :
Thickness : 5mm to 150mm
Width : 1500mm-4200mm
Length : 3000mm-18000mm
Production : Hot-Rolled (HR) / Cold-Rolled (CR)
Heat Treatment : Rolled/Normalised/N+T/QT
Dimension range : 1.5mm -260mm x 1000mm-4000mm x 1000mm-18000mm
Chemical Composition of SA 387 GR. 22 Plates In Thailand
| C | Mn | P | S | Si | Cr | Mo | V |
| 0.05 – 0.15 | 0.30 – 0.60 | 0.035 | 0.035 | 0.50 max | 2.00 – 2.50 | 0.90 – 1.10 | – |
Mechanical Properties of SA 387 GR. 22 Plates In Thailand
| Tensile strength, ksi [MPA] | Yield strength, min, ksi [MPa]/(0.2% offset) | Elongation in 8 in. [200mm], min % | Elongation in 2 in. [50mm], min, % | Reduction of area, min % |
| 75-100 [515-690] | 45 [310] | – | 18 | 40 |
SA 387 GR. 22 Plates Processing In Thailand
The majority of normal processing can be performed on SA 387 GR. 22 Plate
- Cutting
- Forming Drilling/ Machining
- Grinding
- Testing
SA 387 GR. 22 Plates Application Industries In Thailand
Some of the key applications are :
- Liner Plates
- Automobile Industries
- Petrochemicals
- Oil & Natural Gas
- Conveyer Belts Plates
- Dumber Bodies Plates
- Slide conveyor
- Pumps
- Loaders
Other Types Of SA 387 GR. 22 Plates In Thailand
Moly Chrome Plate ASTM A387 22 Cl.2 Plate, SA 387 Gr.22 Cl.2, Cr-Mo Steel Plate Traders, A387 Gr 22 Class 2 Alloy Steel Hot Rolled Plates, SA387 Gr.22 Cl.2 Chrome Moly Alloy Steel Cold Rolled Plates Stockists, EN10028-3 A387 Grade 22 Class 2 Pressure Vessel Plates, Cr Mo Grade 22 Cl.2 Plates, Cut to Size SA387 Gr.22 Cl.2 Plates, A387 Grade 22 Class 2 Low Alloy Steel Plate, High Strength SA387 Gr.22 Cl.2 Plates, SA387 Gr22 Cl2 Clad Steel Plate, JIS G3115, JIS G3103, EN 10028-2, EN 10028-3, EN 10028-6 Alloy Steel Plates Stockholders, CrMo ASTM/ASME A/SA 387 Grade 22 Class 2 Plates Stocks
