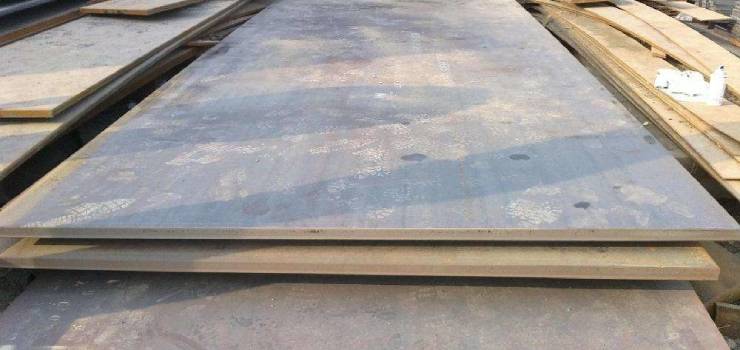

ROCKHARD 400 PLATES IN THAILAND

Abrasion Resistant Rockhard 400 Plates, ROCKHARD 400, Rockhard 400 Plate Exporters, Stockists and Suppliers in Thailand, Rockhard 400 Wear Resistance Plates

Champak Steel & Engg. Co, based in Mumbai, India, is a trusted supplier and exporter of ROCKHARD 400 PLATES in Thailand. Made of wear-resistant, high-strength steel these plates are intended to function in harsh conditions. Known for their durability and toughness, ROCKHARD 400 plates are widely used where materials face heavy impact and abrasion. With years of experience in exporting, we ship to major cities in Thailand like Bangkok, Rayong, and Chonburi.

ROCKHARD 400 plates are manufactured to handle high-impact applications. These plates are used in mining equipment, construction tools, dump truck bodies, and heavy machinery. Their mechanical strength makes them perfect for harsh work conditions. The plates offer a yield strength of 1,000 MPa, tensile strength between 1,250 to 1,400 MPa, and elongation of 10%. With a hardness of 400 HBW and thickness ranging from 2mm to 150mm, these plates stand up to constant wear and tear without breaking down.

We offer both standard and custom sizes in widths from 1,250mm to 2,500mm and lengths from 6,000mm to 12,000mm. Before shipping, every plate is put through a variouos testing process. Impact, hardness and ultrasonic testing are important tests. Our plates are accompanied by documentation such as heat treatment charts and raw material records, as well as mill test certifications (EN 10204/3.1B). Plates are packed with edge protection and anti-rust coatings for safe transport. Fast shipping is available by air or sea cargo.

Need ROCKHARD 400 plates in Thailand? Get in touch with our team today to discuss your requirements. We provide fast quotes, clear documentation, and reliable delivery timelines. Whether you need small or bulk orders, we’ve got you covered. Experience smooth service and trusted supply with us.

Rockhard 400 Plates Specification In Thailand :

Thickness : 6mm to 100mm
Width : 1,500mm to 2,500mm
Length : 6,000mm to 12,000mm
Production : Hot-Rolled (HR) / Cold-Rolled (CR)
Heat Treatment : N, Q+T
Surface Paint : EP, PE, HDP, SMP, PVDF
Material : Rockhard 400, Rockhard 400 Steel Plate, Rockhard 400 Abrasion Resistant Steel Plates, Rockhard 400 Wear Resistant Plates

Chemical Composition of Rockhard 400 Plates In Thailand

Plate	C	Si	Mn	P	S	Cr	Ni	Mo	B	CEV	CET
thickness mm	max %	max %	max %	max %	max %	max %	max %	max %	max %	typv	typv
3- 6	0.15	0.70	1.60	0.025	0.01	0.50	0.25	0.25	0.004	0.41	0.28
3-（8）	0.15	0.70	1.60	0.025	0.01	0.30	0.25	0.25	0.004	0.33	0.23
8 – 20	0.15	0.70	1.60	0.025	0.01	0.50	0.25	0.25	0.004	0.37	0.27
（20）-32	0.18	0.70	1.60	0.025	0.01	1.00	0.25	0.25	0.004	0.48	0.29
（32）-45	0.22	0.70	1.60	0.025	0.01	1.40	0.50	0.60	0.004	0.57	0.31
（45）-51	0.22	0.70	1.60	0.025	0.01	1.40	0.50	0.60	0.004	0.57	0.38
（51）-80	0.27	0.70	1.60	0.025	0.01	1.40	1.00	0.60	0.004	0.65	0.41
（80）-130	0.32	0.70	1.60	0.025	0.01	1.40	1.50	0.60	0.004	0.73	0.48

Mechanical Properties of Rockhard 400 Plates In Thailand

Grade	Mechanical Property			Charpy V Impact Test
Rockhard 400	Yield	Tensile	Elongation	Degree	longitudinal
	Min Mpa	Mpa	Min %	-40	J
	1000	1250	10	-40	45

Rockhard 400 Plates Processing In Thailand

The majority of normal processing can be performed on Rockhard 400 Plate

Cutting
Forming Drilling/ Machining
Grinding
Testing

Rockhard 400 Plates Application Industries In Thailand

Some of the key applications are :

Liner Plates
Automobile Industries
Petrochemicals
Oil & Natural Gas
Conveyer Belts Plates
Dumber Bodies Plates
Slide conveyor
Pumps
Loaders

Other Types Of Rockhard 400 Plates In Thailand

Rockhard 400 Stockholders, Rockhard 400 Plates stockyard, High Strength Rockhard 400 Plate Stocks, Rockhard 400 Abrasion Resistant Weldable Steel Plates, Rockhard 400 Wear Plates Suppliers, EN 10051 Rockhard 400 Plates Exporters, Rockhard 400 Hardness Plates, Rockhard 400 importers, Abrasion resistant Rockhard 400 Steel Plate Dealers, Low-Temperature Rockhard 400 Steel Plates Traders, Rockhard 400LT plates Manufactures, Rockhard 400 quenched and tempered steel plate inventory, Rockhard 400 Stone Crusher Liner Plates wholesaler, Rockhard 400BHN Plates, JINDAL Rockhard 400 Abrasion Resistant Steel Plates, JINDAL Rockhard 400 Abrasion Resistant Steel Plates, JINDAL Steel Make Rockhard 400 Plate, Rockhard 400 HBW, Rockhard 400 Brinell plate Stockists
