Steel Standard: EN10025
Thicknesses: 3 mm to 300 mm
Widths: 2000 mm, 2500 mm, 3000 mm
Lengths: Up to 12000 mm long
Standard: Technical delivery conditions
for flat products of high yield strength, structural steels in the quenched and tempered
condition
Approval By Third Party: ABS, DNV, GL,
CCS, LR, RINA, KR, TUV, CE
Classification: Hot rolled products of
structural steels

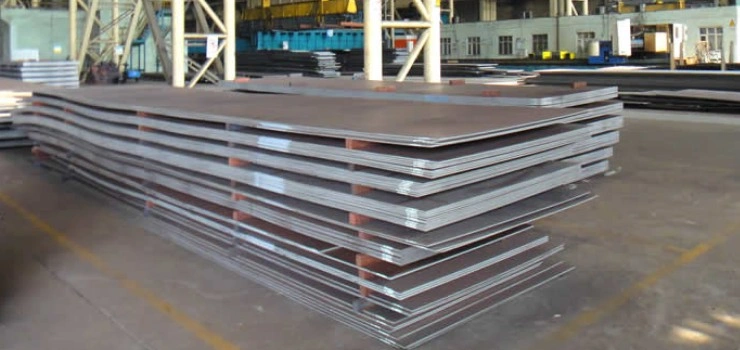

S960QL Steel Plate
S960QL, S960QL Plate, EN 10025-6 S960QL High Strength Structural Steel Plate
S960QL steel plate is a high-strength structural steel grade designed to offer excellent performance in demanding load-bearing applications. Classified under the EN 10025-6 standard, S960QL is a quenched and tempered fine grain structural steel with a minimum yield strength of 960 MPa, making it one of the highest strength steels available for structural use. The "S" stands for structural steel, "960" indicates the yield strength, "Q" refers to quenching, and "L" denotes low-temperature impact testing at -40°C.
The steel is alloyed with elements like chromium, molybdenum, nickel, and boron, which contribute to its high strength, toughness, and hardenability. Its microstructure is refined during controlled heat treatment, ensuring excellent resistance to brittle fracture and fatigue. Despite its high strength, S960QL maintains good weldability and formability, thanks to its low carbon equivalent and micro-alloying composition. It is available in thicknesses ranging from 3 mm to 300 mm, and is commonly used in industries like crane manufacturing, heavy transport, construction machinery, mining equipment, and offshore structures, where reduced weight and increased load-bearing capacity are critical.
The high yield-to-weight ratio of S960QL allows engineers to design lighter structures without compromising strength or safety, resulting in cost-effective fabrication and improved energy efficiency. However, due to its strength, specific processing recommendations must be followed during cutting, welding, and forming to avoid cracking and structural failure. Champak Steel & Engg. Co is a notable manufacturer, supplier, and stockist of S960QL Plate in Mumbai, India
Content
- S960QL Plates Specification
- S960QL Plates Chemical Analysis
- S960QL Plate Mechanical Properties
- S960QL Steel Plate Equivalent grades
- S960QL Steel Plate V Notch Impact Testing
- EN 10025 S960QL Plates Processing
- Price List of S960QL Plate
- S960QL Plates Application Industries
- Other Keywords For S960QL Structural Steel Plates
- Worldwide Distributors of S960QL High Tensile Strength Steel Plates
S960QL Steel Plates Specification :
S960QL Steel Plate Chemical Composition
|
Grade
|
C
|
Si
|
Mn
|
P
|
S
|
N
|
B
|
Cr
|
Cu
|
Mo
|
Nb*
|
Ni
|
Ti*
|
V*
|
Zr*
|
|
S960QL
|
0.20
|
0.80
|
1.70
|
0.020
|
0.010
|
0.015
|
0.0050
|
1.50
|
0.50
|
0.70
|
0.06
|
2.0
|
0.05
|
0.12
|
0.15
|
S960QL Plate Mechanical Properties
|
Designation
|
Mechanical Properties (ambient
temperature)
|
|||||||
|
Steel Name
|
Steel Number
|
Min. Yield Strength Reh MPa
|
Tensile Strength Rm MPa
|
Min. % elongation after fracture
|
||||
|
Nominal thickness (mm)
|
Nominal thickness (mm)
|
|||||||
|
≥3 ≤50
|
≥50 ≤100
|
≥100 ≤150
|
≥3 ≤50
|
≥50 ≤100
|
≥100 ≤150
|
|||
|
S960QL
|
1.8933
|
960
|
––
|
––
|
980/1150
|
––
|
––
|
10
|
Equivalent steel grade of S960QL
|
Equivalent steel grade of S960QL |
|||
|
Europe |
Germany |
France |
Sweden |
|
|
TStE 960 V |
E 960T |
|
S960QL Steel Plate V Notch Impact Testing
|
Grade
|
Sample Orientation
|
@ 0°C
|
@-20°C
|
@-40°C
|
@-60°C
|
|
S960QL
|
Longitudinal
|
50 J
|
40 J
|
30 J
|
––
|
|
Traverse
|
35 J
|
30 J
|
27 J
|
––
|
S960QL Plate Processing
The majority of normal processing can be performed on S960QL plate
- Cutting
- Forming Drilling/ Machining
- Grinding
- Testing
$ Price Of S960QL Plate
- EN 10025-6
S960QL High Strength Plates
US$ 1055–1345 / Ton - EN 10025-6
S960QL Plates
US$ 500–600 / Ton - S960QL High
Strength Structural Plates
US$ 1050–1350 / Ton - S960QL Hot
Rolled Plates for Structure
US$ 600–800 / Ton - S960QL Hot
Rolled Carbon High Strength Steel Plate
US$ 550–600 / Ton
S960QL Plates Application Industries
Some of the key applications are :
- Fabrication
- Automobile Industries
- General Engineering
- Oil & Natural Gas
- Machine building
- Infrastructure
- Slide conveyor
- Pumps
- Loaders
