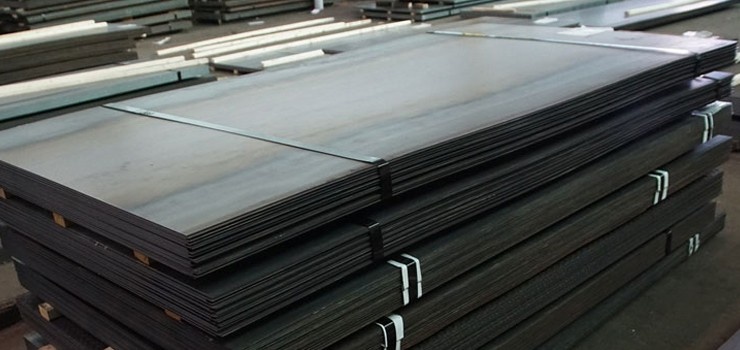

ASTM SA 517 Grade F Plates

ASME SA 285 Grade C Plates

ASTM SA517 Grade F Carbon Steel plate, ASME SA517 Gr.F Pressure Vessel Steel Plate Exporters, Suppliers and Stockists in India.

ASTM SA 517 Grade F Plates are high-strength alloy steel plates made for pressure vessels and boilers working in extreme conditions. These plates are quenched and tempered to boost strength and durability. Champak Steel & Engg. Co. offers these plates with consistent mechanical properties and accurate thickness. They contain chromium, nickel, and molybdenum, which help resist corrosion and improve weldability. With excellent toughness and tensile strength, these plates hold up well under high pressure. The plates also maintain good performance in low-temperature environments, making them reliable for challenging applications.

Our plates are known for their long lifespan, good notch toughness, and high yield strength. They are helpful in various applications as they are easy to fabricate. Common uses include oil and gas platforms, heat exchangers, pressure vessels, chemical tanks, and heavy-duty equipment. They are perfect for high-pressure applications because of their strong structure and ability to withstand cracking under stress. Additionally, they function effectively in frozen temperatures where ordinary steel could not hold up.

We offer ASTM SA 517 Grade F Plates in various sizes, thicknesses, and widths to suit different applications. Typical thicknesses range from 6 mm to 150 mm, and widths go up to 2500 mm. Lengths are available up to 12 meters. Custom sizes are available on request. The price depends on thickness, size, and quantity. For bulk orders, we offer competitive rates.

All plates go through strict quality checks. To make sure they meet ASME and ASTM requirements, these include impact, hardness and ultrasonic testing. As a leading supplier, we ensure each batch is inspected before dispatch, and material certificates are provided. For quality plates that meet tough project needs, contact us today for a quick quote or any further info.

SA517 Gr.F Boiler Plates Stockholders, Grade F ASTM SA517 Welded Steel Plates Dealer, ASME SA 517 Carbon Steel High-Strength Plates, ASTM SA517 Grade F Steel Plates Distributors in Mumbai.

Content

ASTM SA 517 Grade F Plates Specification :

Product Name: ASTM SA517 Grade F Steel Plates
Standard: ASTM SA517 is the Standard Specification for Pressure Vessel Plates, Alloy Steel, High-Strengh, Quenched and Tempered
Thickness : 6MM to 300MM
Width : 1500mm to 4050mm
Length : 3000mm to 15000mm
Applications : Storage Tanks, Low Pressure Vessels, Temperature Controlled Vessels, Heat Exchangers Pressure Vessels and Boilers.

Chemical Composition of ASTM SA517 Grade F Plate

Grade The Element Max (%)
C Si Mn P S Cu
ASTM SA517 grade F 0.08-0.22 0.13-0.37 0.55-1.10 0.035 0.035 0.12-0.53
Cr Mo B V Ni
0.36-0.69 0.36-0.64 0.0005-0.006 0.02-0.09 0.67-1.03

Mechanical Properties of ASTM SA517 Gr F Plate

Grade Thickness Yield Tensile Elongation
ASTM A517 grade F mm Min Mpa Mpa Min  %
6-50 690 795-930 16%
65-150 620 725-930 14%

ASTM SA517 Gr F Plate Processing

The majority of normal processing can be performed on ASTM A517 Gr F Plate

  • Cutting
  • Forming Drilling/ Machining
  • Grinding
  • Testing

$ Price Of ASTM SA 517 Grade F Plates

ASTM SA 517 Grade F Plates Application Industries

An industrial site under construction at night featuring a tall cooling tower and several cranes. The cooling tower is illuminated, with a partially completed building nearby surrounded by construction equipment and lights.

Some of the key applications are :

  • Nuclear Reactor Pressure Vessel
  • Heat recovery steam generations (HRSG)
  • Steam, Boiler and heat exchanger
  • Gas and steam turbines
  • Thermal Power Stations
  • Separator
  • Slide conveyor
  • Liquefied Petroleum
  • Chemical Industry

Other Types Of ASTM SA 517 Grade F Plates

ASTM A517 Grade F plates are available in several types to cater to diverse industrial applications. These include quenched and tempered plates that offer high strength and toughness, making them ideal for use in low-temperature and high-pressure environments such as pressure vessels and storage tanks. Boiler quality plates and pressure vessel steel plates are commonly used in thermal and petrochemical industries due to their ability to withstand extreme pressure and heat. For structural applications, weldable and high-strength steel plates are preferred because of their excellent fabricability and load-bearing capacity. Additionally, manufacturers offer cut-to-size and pre-machined plates tailored to specific design requirements. Specialized variants like NACE-certified and HIC-tested plates are used in sour gas and corrosive environments to resist hydrogen-induced cracking and corrosion. Other types include normalized and tempered plates for improved mechanical performance and dimensional stability, as well as abrasion-resistant and corrosion-resistant plates suitable for mining, marine, and heavy equipment sectors.
