SA 387 GR. 22 PLATE IN SAUDI ARABIA

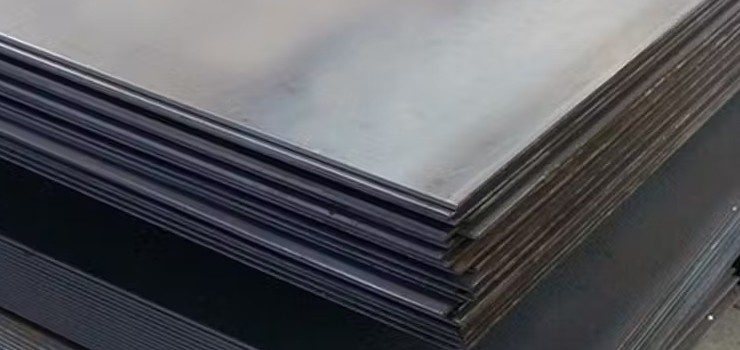

SA 387 GR. SA 387 GR. 22 Plate In Saudi Arabia

Grade 22 Class 2 A387 Alloy Steel Plates Dealer, SA 387 Gr. 22 Cl. 2 Pressure Vessel Steel Plates Stockholders, A387GR22CL2 Cr-Mo Steel Plates Distributors in Saudi Arabia

Champak Steel & Engg. Co, based in Mumbai, India, is a trusted name when it comes to supplying high-quality SA 387 GR. 22 plates in Saudi Arabia. With years of experience, we’ve delivered alloy steel plates to major cities including Riyadh, Dammam, Jeddah, and Jubail. These plates are known for their strength and longevity, and they are made from high-quality materials in accordance with international standards. Whether you require conventional sizes, or unique measurements, we guarantee prompt delivery with complete traceability and compliance.

SA 387 GR. 22 plates are made from chromium-molybdenum alloy steel designed for use in pressure vessels, and high-temperature applications. They are made using the hot-rolled method and are used a lot in mining, construction, power plants, petrochemical plants, and heavy equipment. These plates are made to handle harsh environments, like the extreme heat and corrosive temperatures that are frequent in Saudi Arabia. It contains chromium, which improves resistance to oxidation and corrosion, and molybdenum, which increases tensile strength.  We provide these plates in thicknesses ranging from 5mm to 150mm and widths up to 4500mm. These plates meet ASTM A387 / ASME SA 387 standards and are impact-tested at -52°C to ensure performance.

Each SA 387 GR. 22 plate goes through rigorous quality checks and comes with mill test certificates in line with EN 10204/3.1B. We also provide raw material reports, heat treatment charts, and material traceability documents. Third-party inspections are available on request. To prevent damage during transit, plates are securely packaged on wooden pallets, waterproof wrapping, or strapped bundles.  We provide quick sea and air cargo delivery to all major industrial zones.

With our consistent quality, fair pricing, and fast delivery, we’ve earned the trust of clients across Saudi Arabia. Contact us today to get a quote or discuss your project needs—we’re ready to support your next order with accuracy and care.

SA 387 GR. 22 Plates Specification In Saudi Arabia :

Thickness : 5mm to 150mm
Width : 1500mm-4200mm
Length : 3000mm-18000mm
Production : Hot-Rolled (HR) / Cold-Rolled (CR)
Heat Treatment : Rolled/Normalised/N+T/QT
Dimension range : 1.5mm -260mm x 1000mm-4000mm x 1000mm-18000mm

Chemical Composition of SA 387 GR. 22 Plates In Saudi Arabia

C Mn P S Si Cr Mo V
0.05 – 0.15 0.30 – 0.60 0.035 0.035 0.50 max 2.00 – 2.50 0.90 – 1.10

Mechanical Properties of SA 387 GR. 22 Plates In Saudi Arabia

Tensile strength, ksi [MPA] Yield strength, min, ksi [MPa]/(0.2% offset) Elongation in 8 in. [200mm], min % Elongation in 2 in. [50mm], min, % Reduction of area, min %
75-100 [515-690] 45 [310] 18 40

SA 387 GR. 22 Plates Processing In Saudi Arabia

The majority of normal processing can be performed on SA 387 GR. 22 Plate

  • Cutting
  • Forming Drilling/ Machining
  • Grinding
  • Testing

SA 387 GR. 22 Plates Application Industries In Saudi Arabia

application-industry

Some of the key applications are :

Other Types Of SA 387 GR. 22 Plates In Saudi Arabia

Moly Chrome Plate ASTM A387 22 Cl.2 Plate, SA 387 Gr.22 Cl.2, Cr-Mo Steel Plate Traders, A387 Gr 22 Class 2 Alloy Steel Hot Rolled Plates, SA387 Gr.22 Cl.2 Chrome Moly Alloy Steel Cold Rolled Plates Stockists, EN10028-3 A387 Grade 22 Class 2 Pressure Vessel Plates, Cr Mo Grade 22 Cl.2 Plates, Cut to Size SA387 Gr.22 Cl.2 Plates, A387 Grade 22 Class 2 Low Alloy Steel Plate, High Strength SA387 Gr.22 Cl.2 Plates, SA387 Gr22 Cl2 Clad Steel Plate, JIS G3115, JIS G3103, EN 10028-2, EN 10028-3, EN 10028-6 Alloy Steel Plates Stockholders, CrMo ASTM/ASME A/SA 387 Grade 22 Class 2 Plates Stocks
