SA 387 GR. 22 PLATE IN OMAN

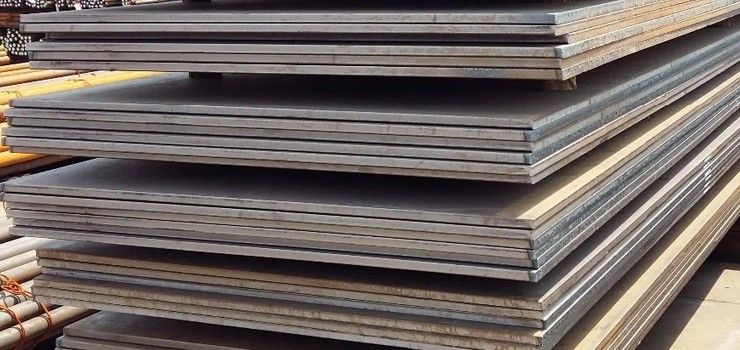

SA 387 GR. SA 387 GR. 22 Plate In Oman

A387GR22CL2 Cr-Mo Steel Plates Distributors in Oman, SA 387 Gr. 22 Cl. 2 Pressure Vessel Steel Plates Stockholders, Grade 22 Class 2 A387 Alloy Steel Plates Dealer

Champak Steel & Engg. Co, based in Mumbai, India is a trusted supplier and exporter of SA 387 GR. 22 Plates to Oman.  Our high strength plates are frequently shipped to important Oman cities like Muscat, Salalah, Sohar and Nizwa. Oman’s industries use our plates widely because of their reputation for strength and superior performance under challenging circumstances. Customers choose us because we provide complete technical support, quick turnaround and high quality products. Our plates are made with raw materials and cutting edge techniques to guarantee a long service life particularly in high temperature and high pressure environments.

Alloy steel plates SA 387 GR. 22 are made to be used in pressure vessels and boilers. These plates are perfect for oil and gas projects, refineries, and power plants because they are made to function in high temperature service. They are composed of molybdenum and chrome and have improved corrosion and heat resistance and function well in harsh conditions because of their high tensile strength and flexibility. For demanding industrial operations our SA 387 GR 22 plates are the ideal option.

We provide SA 387 GR. 22 plates in a variety of thicknesses, ranging from 3 mm to 100 mm. We can cut to your specifications or use standard sheet sizes. Depending on the requirements of your project, surface finishes can be smooth, shot-blasted or primer-coated. Every plate is made to order in Mumbai, and custom sizing is never a problem. We understand that every job is different, so we focus on flexibility and precision.

Our plates come with full traceability, ISO 9001:2015 certification, and quality checks at every stage. We perform tests such as chemical analysis, tensile strength testing, hardness testing and ultrasonic testing. If necessary, third-party inspection is also offered. Steel straps, waterproof wrapping, and wooden pallets are used in the careful packaging process to prevent damage during shipping. We provide quick sea and air delivery options to your location and have years of exporting to Oman so we are well-versed in the import requirements.

Get in touch with us now for a trustworthy source for SA 387 GR. 22 plates in Oman. We guarantee fast delivery, affordable prices and dependable service whether you require custom sizes or large orders. Allow us to assist you in obtaining the appropriate material for your project.

SA 387 GR. 22 Plates Specification In Oman :

Thickness : 5mm to 150mm
Width : 1500mm-4200mm
Length : 3000mm-18000mm
Production : Hot-Rolled (HR) / Cold-Rolled (CR)
Heat Treatment : Rolled/Normalised/N+T/QT
Dimension range : 1.5mm -260mm x 1000mm-4000mm x 1000mm-18000mm

Chemical Composition of SA 387 GR. 22 Plates In Oman

C Mn P S Si Cr Mo V
0.05 – 0.15 0.30 – 0.60 0.035 0.035 0.50 max 2.00 – 2.50 0.90 – 1.10

Mechanical Properties of SA 387 GR. 22 Plates In Oman

Tensile strength, ksi [MPA] Yield strength, min, ksi [MPa]/(0.2% offset) Elongation in 8 in. [200mm], min % Elongation in 2 in. [50mm], min, % Reduction of area, min %
75-100 [515-690] 45 [310] 18 40

SA 387 GR. 22 Plates Processing In Oman

The majority of normal processing can be performed on SA 387 GR. 22 Plate

  • Cutting
  • Forming Drilling/ Machining
  • Grinding
  • Testing

SA 387 GR. 22 Plates Application Industries In Oman

application-industry

Some of the key applications are :

Other Types Of SA 387 GR. 22 Plates In Oman

EN10028-3 A387 Grade 22 Class 2 Pressure Vessel Plates, Cr Mo Grade 22 Cl.2 Plates, Cut to Size SA387 Gr.22 Cl.2 Plates, A387 Grade 22 Class 2 Low Alloy Steel Plate, High Strength SA387 Gr.22 Cl.2 Plates, SA387 Gr22 Cl2 Clad Steel Plate, JIS G3115, JIS G3103, EN 10028-2, EN 10028-3, EN 10028-6 Alloy Steel Plates Stockholders, CrMo ASTM/ASME A/SA 387 Grade 22 Class 2 Plates Stocks
