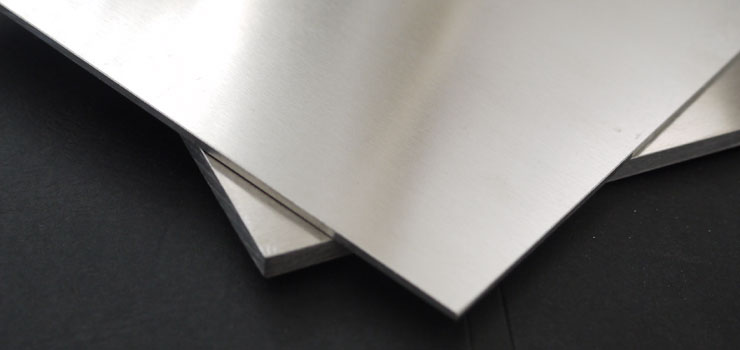

S690QL Plates In UAE

s690ql-plates-in-uae

S690QL Plates in UAE, S690QL Plates Supplier in UAE, S690QL Plates Stockist in UAE, Leading S690QL Plates Supplier and Stockist in UAE

Champak Steel and Engineering Co. is a trusted supplier and exporter name when it comes to S690QL Plates in the UAE. Based in Mumbai, we supply high-strength plates to industries across Dubai, Abu Dhabi, Sharjah and Ajman. Our plates are designed to last in the harsh climate and demanding work conditions. With a strong focus on quality, we make sure each order meets the exact needs of our clients. S690QL Plates are high-strength, low-alloy steel plates designed for heavy use. These plates are made to handle impact, pressure and extreme wear.

UAE industries use these plates in cement plants, transport vehicles, construction machinery, and mining equipment. Our plates are designed to enhance protection for machines and increase their lifespan, even when they are subjected to high-stress conditions. We provide various choices, such as Hardox S690QL Plates, Chromium Carbide Plates, and other wear-resistant steel grades such as AR 400 and AR 500.

We also offer plates that are cut as per the customized order based on the clients drawings, or special needs. Thicknesses vary from 3mm to 100mm with finishes such as smooth, shot-blasted, or primer-coated. The shapes, size, and holes can all be customized to suit the project.

Each plate we provide undergoes rigorous testing and quality inspections. We are an ISO Certified company and offer third-party inspection certificates when required. We follow all the regulations while maintaining the shipping requirements and documentation. Whether delivering by sea, or air we ensure your plates reach you on time for use.

S690QL Plates Specification In UAE :

Thickness : 8-50 mm
Width : 1,500mm to 2,500mm
Length : 6,000mm to 12,000mm
Heat Treatment : Q+T(quenched and Tempered )
Grade : S690QL EN10137-2 EN10025-6:2004, A709-100, DILLIMAX 690, NAXTRA 70, WELDOX 700, E690, JFE HITEN 780LE, ALFORM 700, S690 Q, S690 QL, S690 QL 1

Chemical Composition of S690QL Plates In UAE

C Si Mn P S B Cr Cu Mo N Nb* Ni Ti* V* Zr*
0.20 0.80 1.70 0.020 0.010 0.005 1.50 0.50 0.70 0.015 0.06 2.0 0.05 0.12 0.15

Mechanical Properties of S690QL Plates In UAE

Steel grade Yield strength ReH MPa Tensile strength Rm MPa EN 10025­6: 2004 + A1:2009 Heavy plate thickness mm Obsolete standard EN 10137­2 1995 Elongation,
min %
S690Q, QL 690 770 – 940 S690QL 6 – 60 S690QL 14

S690QL Plates Processing In UAE

The majority of normal processing can be performed on S690QL Plate

  • Cutting
  • Forming Drilling/ Machining
  • Grinding
  • Testing

S690QL Plates Application Industries In UAE

application-industry

Some of the key applications are :

Other Types Of S690QL Plates In UAE

S690QL Plates, S690QL High Strength Plates, S690QL Quenched and Tempered Plates, S690QL Structural Steel Plates, S690QL Wear Resistant Plates, S690QL Abrasion Resistant Plates, S690QL Weldable Steel Plates, S690QL Hardness Plates, S690QL Brinell Hardness Plates, S690QL Low-Temperature Plates, S690QL Stone Crusher Liner Plates, S690QL Heavy Plates, S690QL EN 10025-6 Plates
