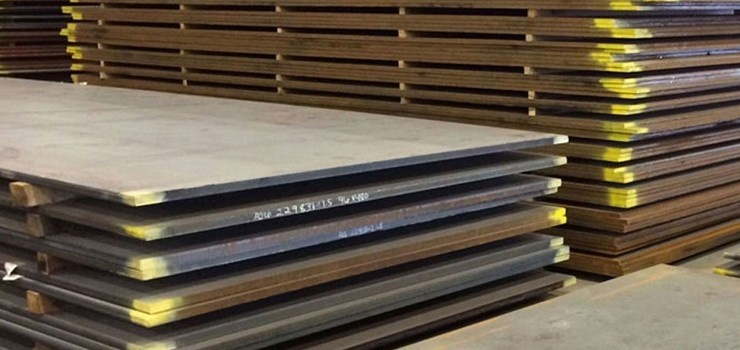

ROCKHARD 500 PLATES IN SINGAPORE

Rockhard 500 Plates Supplier in Singapore, Leading Rockhard 500 Plates Supplier and Stockist in Singapore, Rockhard 500 Plates in Singapore, Rockhard 500 Plates Stockist in Singapore

Champak Steel & Engg. Co. supplies Rockhard 500 plates to industrial buyers in Singapore from our stocking facility in Mumbai. We have been exporting abrasion resistant plates to Asian markets for more than three decades and Singapore has been a consistent destination. These plates are needed here for fabrication work, equipment manufacture, and heavy-duty use where standard structural steel wears out too quickly. Rockhard 500 is a high-strength, wear-resistant material that performs well in conditions of continuous abrasion, sliding contact and impact loading. We ship by sea and air freight, depending on the buyer’s schedule, and can provide plates in standard mill sizes or cut to specific dimensions as required.

Rockhard 500 is a quenched and tempered steel plate. The hardness falls between 470 and 530 HBW, which is on the harder end of the abrasion resistant category. The plate resists surface wear but it also takes impact without fracturing easily. The thickness range is 6mm to 100mm. Width goes up to 3,000mm and length up to 12,000mm. Custom sizes are available if the standard range doesn’t fit the job. The chemical composition shifts slightly depending on thickness. Thicker plates have higher chromium, nickel, and molybdenum content to keep the mechanical properties consistent across the full range. Carbon is kept controlled to support weldability. Pre-heating is recommended before welding at this hardness level. Cutting, drilling, grinding, and forming can all be done with proper tooling.

Key Features and Benefits

These plates are specified when regular wear plates fail too quickly or when replacement frequency is becoming a cost problem. The main reasons buyers choose this grade:

High abrasion resistance
Solid impact strength
Long service life
Fabrication capability
Reduced maintenance cost
Performance in demanding conditions

Singapore has a solid base of equipment fabricators, port operators, and heavy machinery companies, and many of them source wear-resistant plates for both local fabrication and supply into regional projects. In mining equipment, these plates go into bucket liners, chute liners, and contact surfaces that take continuous abrasive load from ore and rock. Construction equipment builders use them for dozer blades, loader buckets, and dump truck bodies where the plate faces both wear and repeated impact. Cement plants use Rockhard 500 in mill liners and conveyor chutes because clinker and raw cement corrode ordinary plates fast. Port and bulk handling terminals fit it into hoppers, silos, and trough liners. Beyond that, crushers, conveyor components, and wear surfaces on quarrying machinery across the region are common applications. Singapore, being a logistics and fabrication hub, means a good share of these plates move through here before reaching the end-use site.

Why Choose Champak Steel & Engg. Co.

We have been exporting plates internationally since 1978. Singapore is a regular destination with shipments regularly going out via established freight partners. We do sea freight to Singapore from Mumbai, India. It is an easy process, and we can also do air freight if you need to rush your order. Each plate comes with mill test certificates under EN 10204/3.1B. Before dispatch, we carry out hardness testing, ultrasonic testing, and dimensional checks. Third-party inspection can be arranged if the buyer specifies it. Traceability records, heat treatment charts, and raw material test reports go out with every order. Custom cutting is available. If a project needs plates in specific sizes, we supply them ready to use. For technical queries, our team can assist with grade comparisons, fabrication guidance, or anything specific to the application.

Rockhard 500 Plates Specification in Singapore :

Product Name : Abrasion Resistant Plate
Thickness : 6mm to 100mm
Standards : ASTM, ASME, EN, DIN, JIS
Thickness : 3 mm to 200 mm (customized available)
Width : 1000 mm to 3000 mm
Length : 2000 mm to 12000 mm (or cut to size)
Hardness : 470 – 530 BHN (nominal hardness for Rockhard 500)
Surface Finish : Mill Finish, Polished, Heat Treated
Production : Hot-Rolled (HR) / Cold-Rolled (CR)
Heat Treatment : Normalized (N), Quenched & Tempered (Q+T)
Material : ROCKHARD 500 Plates, ROCKHARD 500 Abrasion Resistant Steel Plates, ROCKHARD 500 Wear Resistant Plates
Applications : Concrete industry, metallurgy, fan industry, coal industry, mining machinery, construction machinery, etc.

Chemical Composition of Rockhard 500 Plates In Singapore

Plate	C	Si	Mn	P	S	Cr	Ni	Mo	B	CEV	CET
THICKNESS MM	MAX %	MAX %	MAX %	MAX %	MAX %	MAX %	MAX %	MAX %	MAX %	TYPV	TYPV
4-13	0.27	0.7	1.6	0.025	0.01	1.0	0.25	0.25	0.004	0.49	0.34
(13) -32	0.29	0.7	1.6	0.025	0.01	1.0	0.50	0.30	0.004	0.62	0.41
(32) -40	0.29	0.7	1.6	0.025	0.01	1.0	1.00	0.60	0.004	0.64	0.43
(40) -80	0.30	0.7	1.6	0.025	0.01	1.50	1.50	0.60	0.004	0.74	0.46

Mechanical Properties of Rockhard 500 Plates In Singapore

Thickness	Hardness HBW	Typical yield strength MPa,
mm	min – max 1)	not guaranteed
4 – 32	470 – 530	1250
(32) – 103	450 – 540	1250

Rockhard 500 Plates Processing in Singapore

The majority of normal processing can be performed on Rockhard 500 Plate

Cutting
Forming Drilling/ Machining
Grinding
Testing

Rockhard 500 Plates Application Industries in Singapore

Some of the key applications are :

Liner Plates
Automobile Industries
Petrochemicals
Oil & Natural Gas
Conveyer Belts Plates
Dumber Bodies Plates
Slide conveyor
Pumps
Loaders

Other Types Of Rockhard 500 Plates in Singapore

Rockhard 500 Plates, Rockhard 500 Abrasion Resistant Plates, Rockhard 500 Wear Resistant Plates, Rockhard 500 Steel Plates, Rockhard 500 Quenched and Tempered Plates, Rockhard 500 High Strength Plates, Rockhard 500 Weldable Plates, Rockhard 500HB Plates, Rockhard 500 Brinell Hardness Plates, Rockhard 500 Stone Crusher Liner Plates, Rockhard 500LT Low-Temperature Plates, Rockhard 500 Structural Steel Plates
