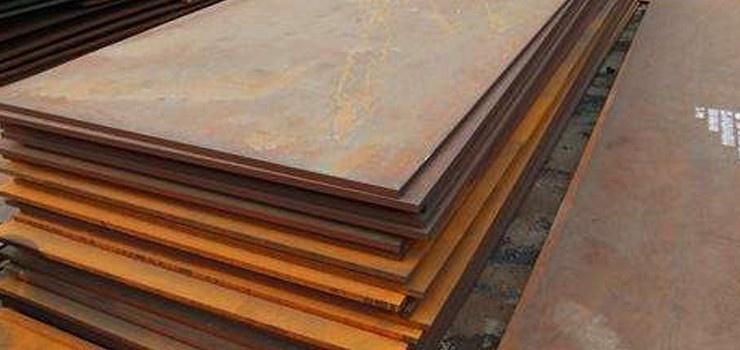

ROCKHARD 500 PLATES IN QATAR

Rockhard 500 Plates Stockist in QATAR, Leading Rockhard 500 Plates Supplier and Stockist in QATAR, Rockhard 500 Plates in QATAR, Rockhard 500 Plates Supplier in QATAR

Champak Steel and Engineering Co. is a reliable exporter of Rockhard 500 plates to Qatar, based in Mumbai, India. We are known for providing high-strength, long-lasting steel plates, which are constructed to perform under demanding conditions. We have become a preferred source for Rockhard 500 in Qatar.

Our Rockhard 500 plates are designed to handle the harsh environments of Qatar’s industries for mining, heavy equipment and construction. It is manufactured with precise detail, our abrasion-resistant steel plates are available in various grades ranging from AR 400, AR 500 and Chromium Carbide types. We understand the import regulations in Qatar well and ensure smooth, timely delivery to cities like Doha, Al Rayyan, Al Khor and Umm Salal.

The Rockhard 500 plates we export to Qatar are made for high wear resistance. They perform well under extreme conditions, making them ideal for loaders, dump trucks, crushers and earth-moving equipment. We offer thicknesses ranging from 3 mm to 100 mm, and also provide standard and cut-to-size plates according to the customer needs. The surface finishes are available in smooth, shot-blasted and primer-coated. Each plate is tested under severe quality control and we provide third-party inspection reports on request.

Our clients in Qatar depend on us for reliable quality, quick sea and air delivery and our ability to fulfill their specific demands. Our products are reliable in public and private sector projects in Qatar. With frequent exports and extensive knowledge of local needs, we are a leading supplier of Rockhard 500 plates in Qatar. We continue to support projects that require strength, endurance, and accuracy in each plate.

Rockhard 500 Plates Specification In Qatar :

Product Name : Abrasion Resistant Plate
Thickness : 6mm to 100mm
Standards : ASTM, ASME, EN, DIN, JIS
Thickness : 3 mm to 200 mm (customized available)
Width : 1000 mm to 3000 mm
Length : 2000 mm to 12000 mm (or cut to size)
Hardness : 470 – 530 BHN (nominal hardness for Rockhard 500)
Surface Finish : Mill Finish, Polished, Heat Treated
Production : Hot-Rolled (HR) / Cold-Rolled (CR)
Heat Treatment : Normalized (N), Quenched & Tempered (Q+T)
Material : ROCKHARD 500 Plates, ROCKHARD 500 Abrasion Resistant Steel Plates, ROCKHARD 500 Wear Resistant Plates
Applications : Concrete industry, metallurgy, fan industry, coal industry, mining machinery, construction machinery, etc.

Chemical Composition of Rockhard 500 Plates In Qatar

Plate	C	Si	Mn	P	S	Cr	Ni	Mo	B	CEV	CET
THICKNESS MM	MAX %	MAX %	MAX %	MAX %	MAX %	MAX %	MAX %	MAX %	MAX %	TYPV	TYPV
4-13	0.27	0.7	1.6	0.025	0.01	1.0	0.25	0.25	0.004	0.49	0.34
(13) -32	0.29	0.7	1.6	0.025	0.01	1.0	0.50	0.30	0.004	0.62	0.41
(32) -40	0.29	0.7	1.6	0.025	0.01	1.0	1.00	0.60	0.004	0.64	0.43
(40) -80	0.30	0.7	1.6	0.025	0.01	1.50	1.50	0.60	0.004	0.74	0.46

Mechanical Properties of Rockhard 500 Plates In Qatar

Thickness	Hardness HBW	Typical yield strength MPa,
mm	min – max 1)	not guaranteed
4 – 32	470 – 530	1250
(32) – 103	450 – 540	1250

Rockhard 500 Plates Processing In Qatar

The majority of normal processing can be performed on Rockhard 500 Plate

Cutting
Forming Drilling/ Machining
Grinding
Testing

Rockhard 500 Plates Application Industries In Qatar

Some of the key applications are :

Liner Plates
Automobile Industries
Petrochemicals
Oil & Natural Gas
Conveyer Belts Plates
Dumber Bodies Plates
Slide conveyor
Pumps
Loaders

Other Types Of Rockhard 500 Plates In Qatar

Rockhard 500 Plates, Rockhard 500 Abrasion Resistant Plates, Rockhard 500 Wear Resistant Plates, Rockhard 500 Steel Plates, Rockhard 500 Quenched and Tempered Plates, Rockhard 500 High Strength Plates, Rockhard 500 Weldable Plates, Rockhard 500HB Plates, Rockhard 500 Brinell Hardness Plates, Rockhard 500 Stone Crusher Liner Plates, Rockhard 500LT Low-Temperature Plates, Rockhard 500 Structural Steel Plates
